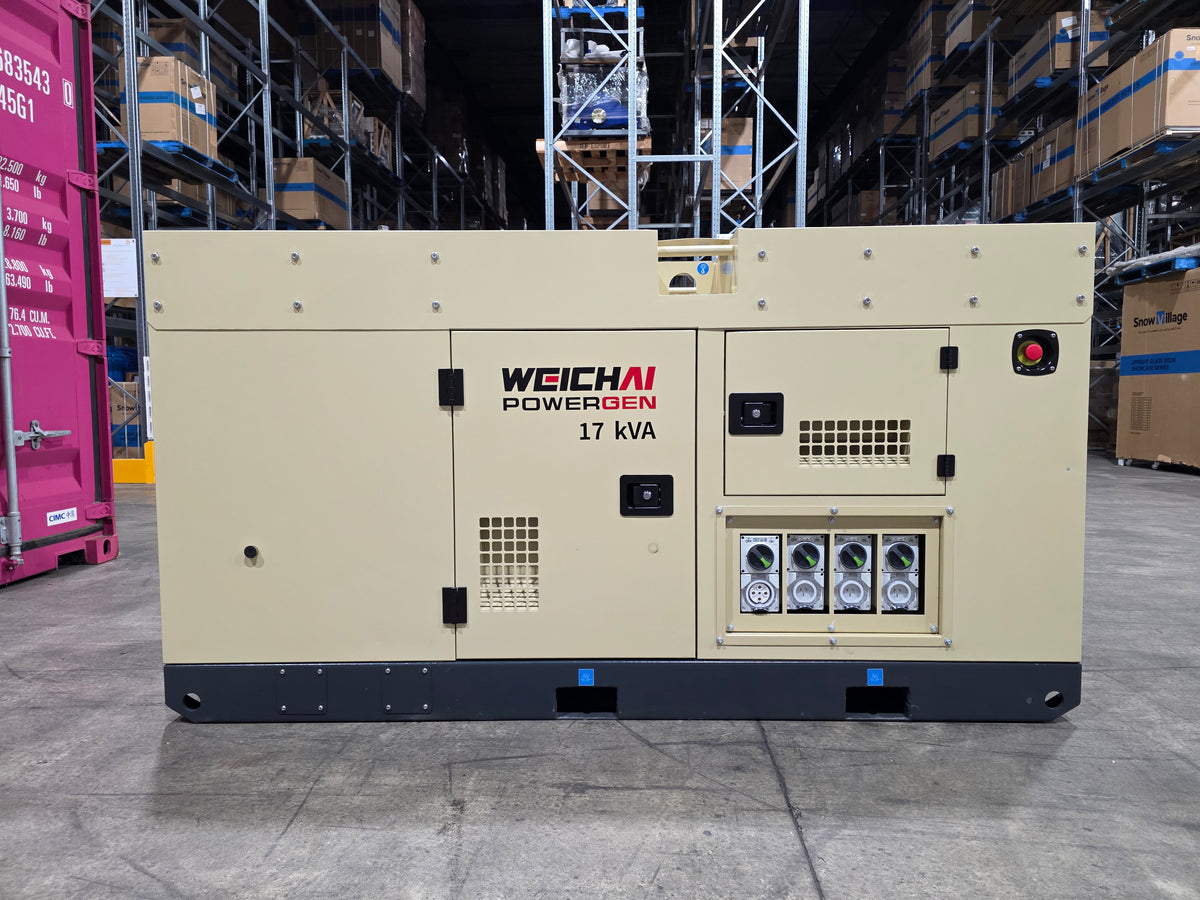

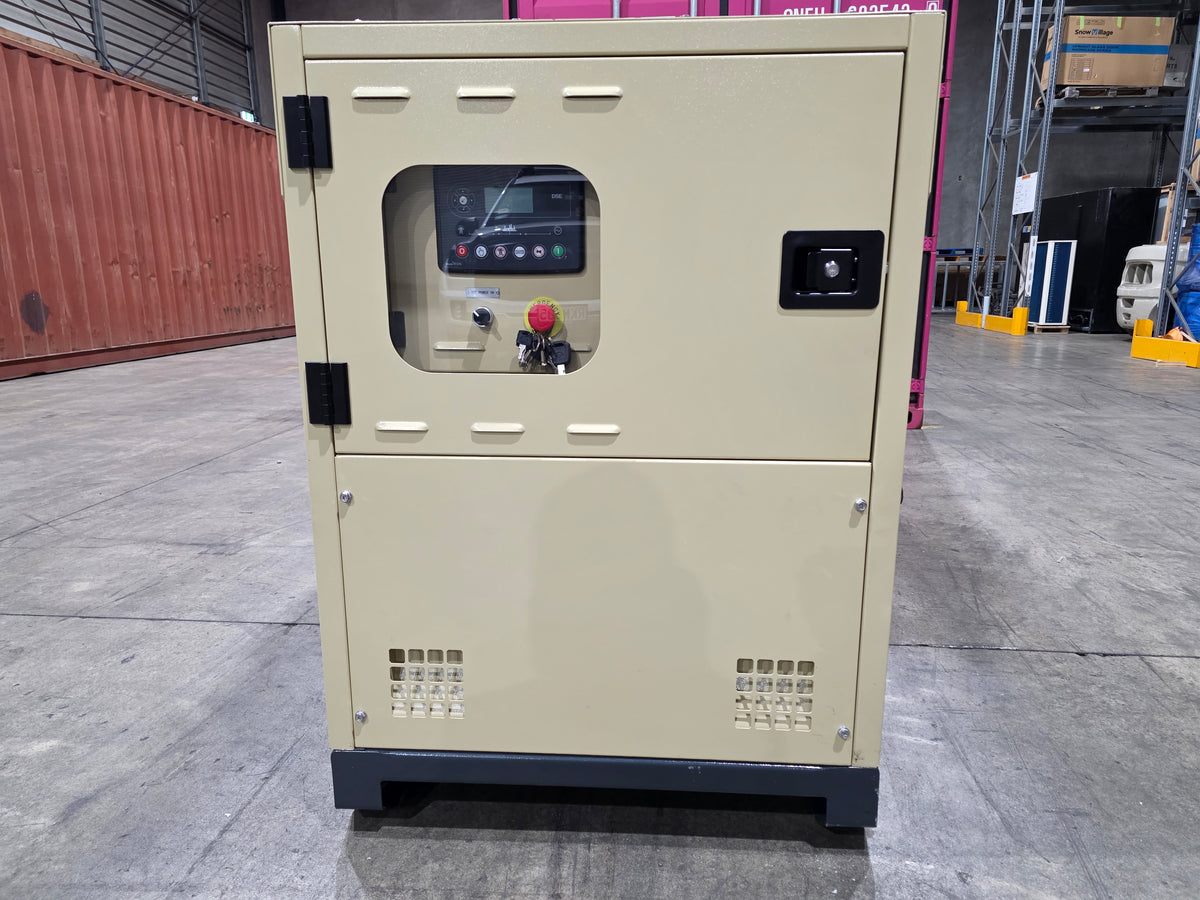

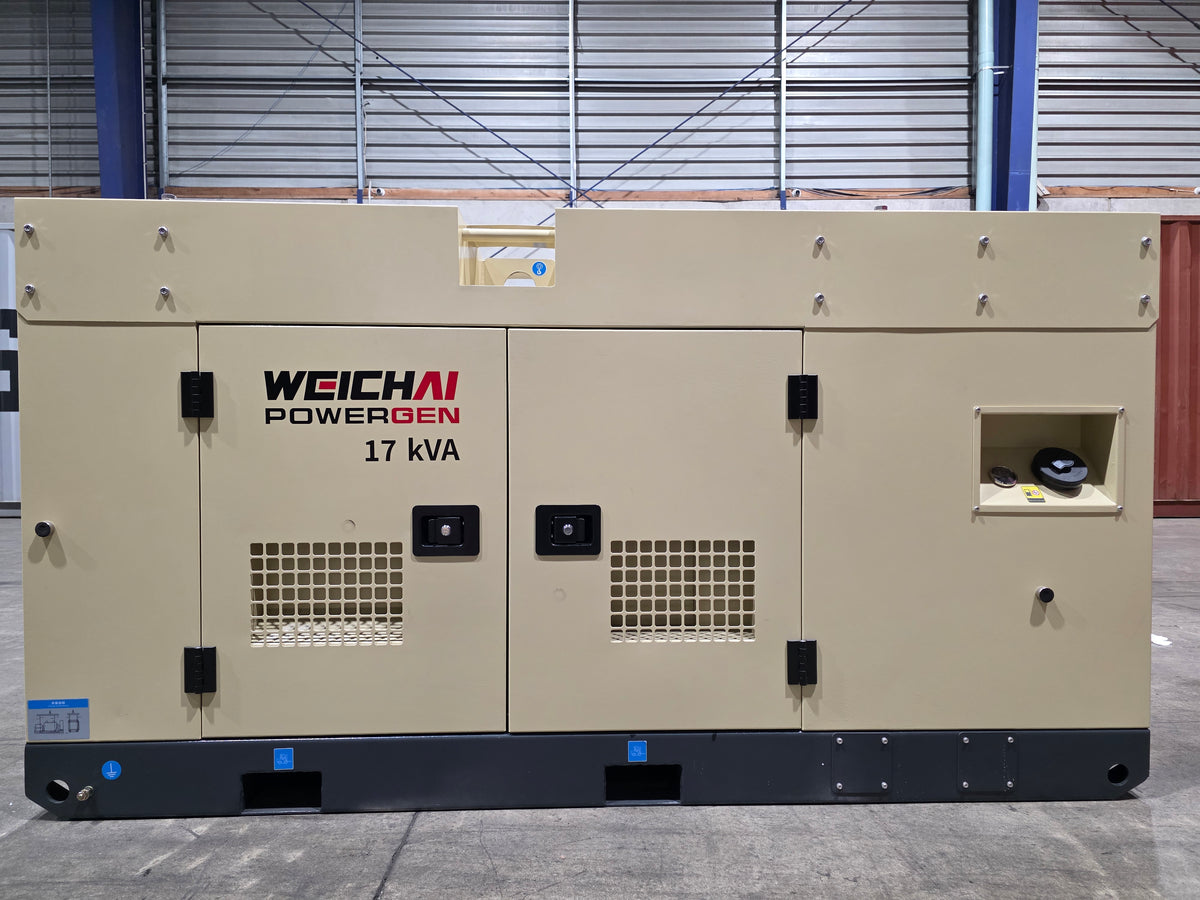

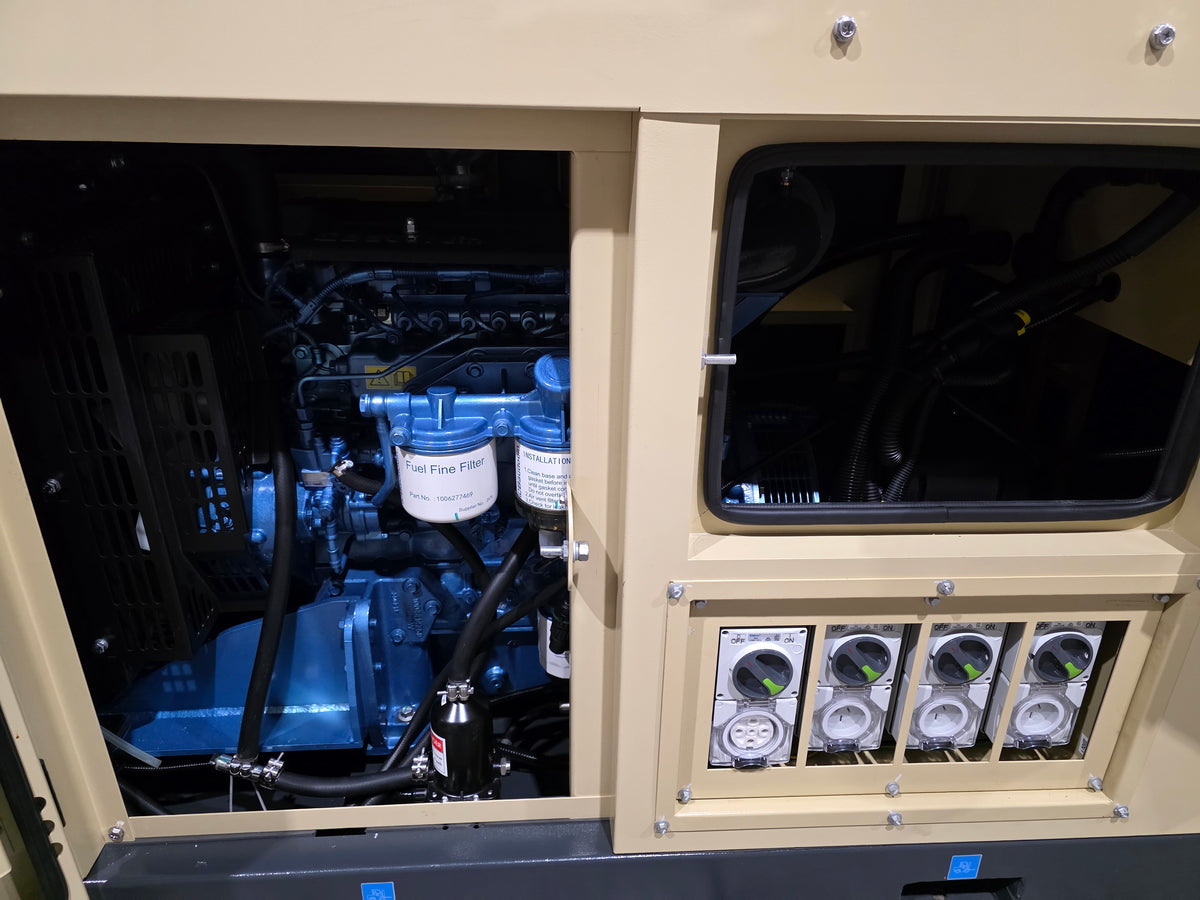

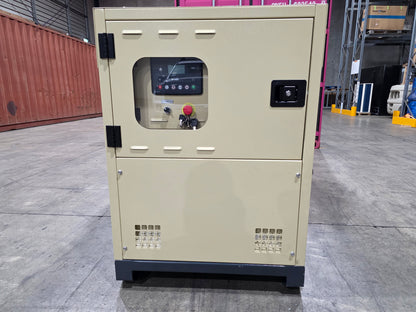

17kVA Standby 15kVA Prime Weichai-Baudouin Genset

GENERATING SET RATINGS 50Hz – 1500rpm @ 0.8p.f.

PRODUCT FEATURES

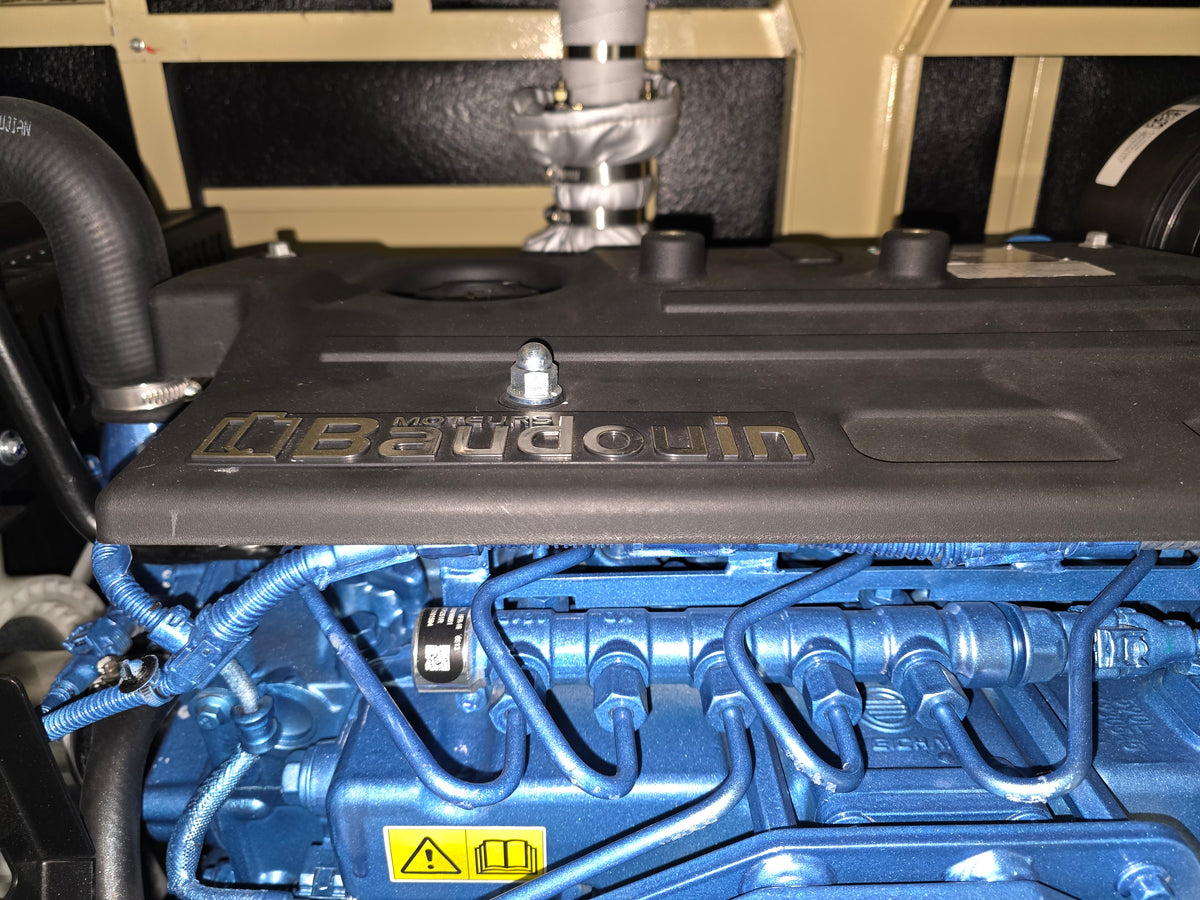

Engine

•Cast iron gantry type structure block •One-piece forged crankshaft

•Separate cast iron cylinder heads and wet liners •Aluminum alloy pistons with oil cooling gallery Cooling system

•Radiator and hoses supplied directly mounted on the engine

•Thermostatically-controlled system with belt driven coolant pump and pusher fan

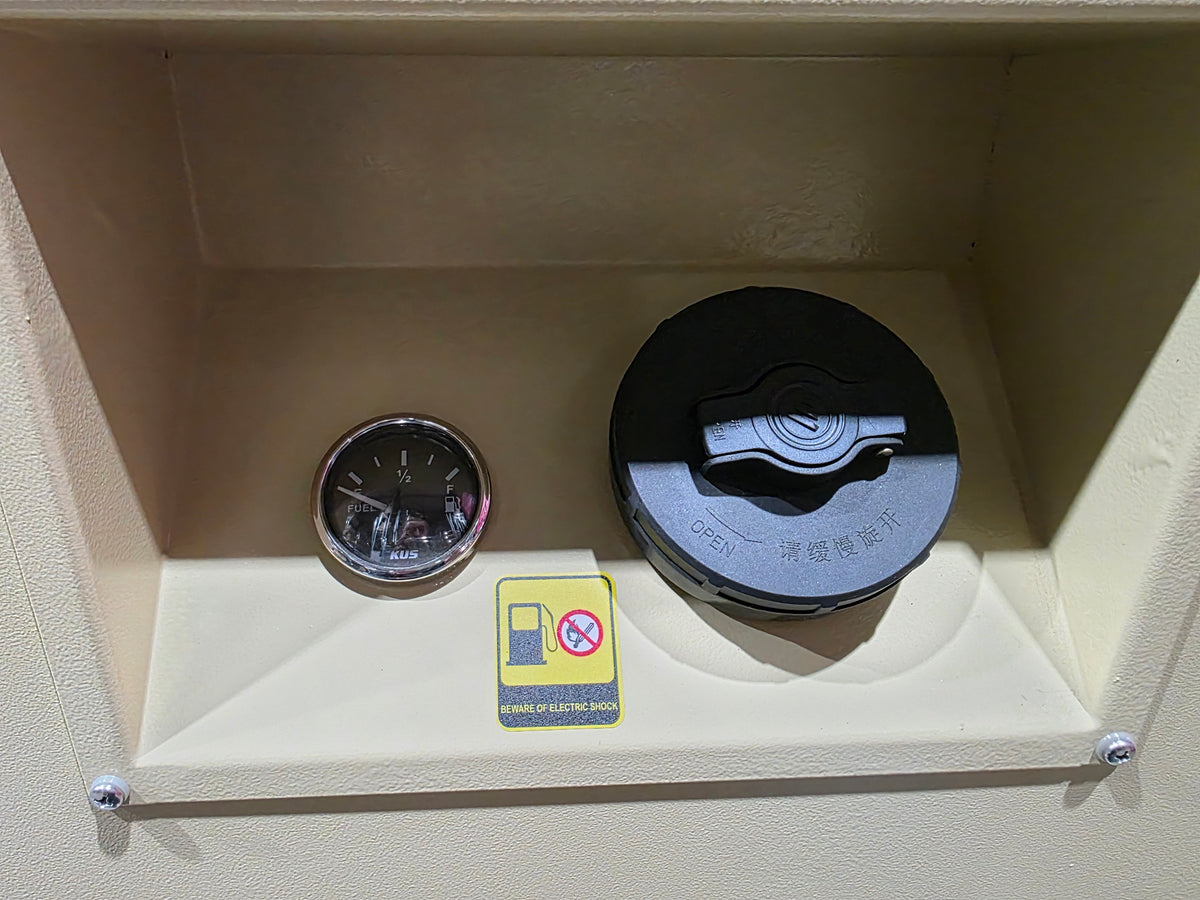

Fuel system

•High pressure Common Rail injection system, for engines with ECU Fine filter

Lubrication system

•Flat bottom large capacity oil pan •Spin-on full-flow lube oil filter

Electrical system

•12 Vdc electric starter motor and battery charging alternator

Air intake and exhaust system

•Special rear-mounted air filter with restriction indicator •Equipped with exhaust silencer

•Exhaust manifold and turbocharger shield for heat isolation

Alternator

•Leroy Somer Brushless, 4 Pole, IP23 drip-proof revolving field design

•Class H insulation and Class H temperature rise •Low reactance with 2/3 pitch windings on the stator •Direct-coupled by flexible disc

•Sustained overcurrent >300% in 10 sec •Direct drive centrifugal blower fan cooling

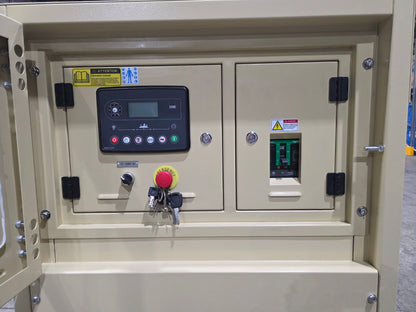

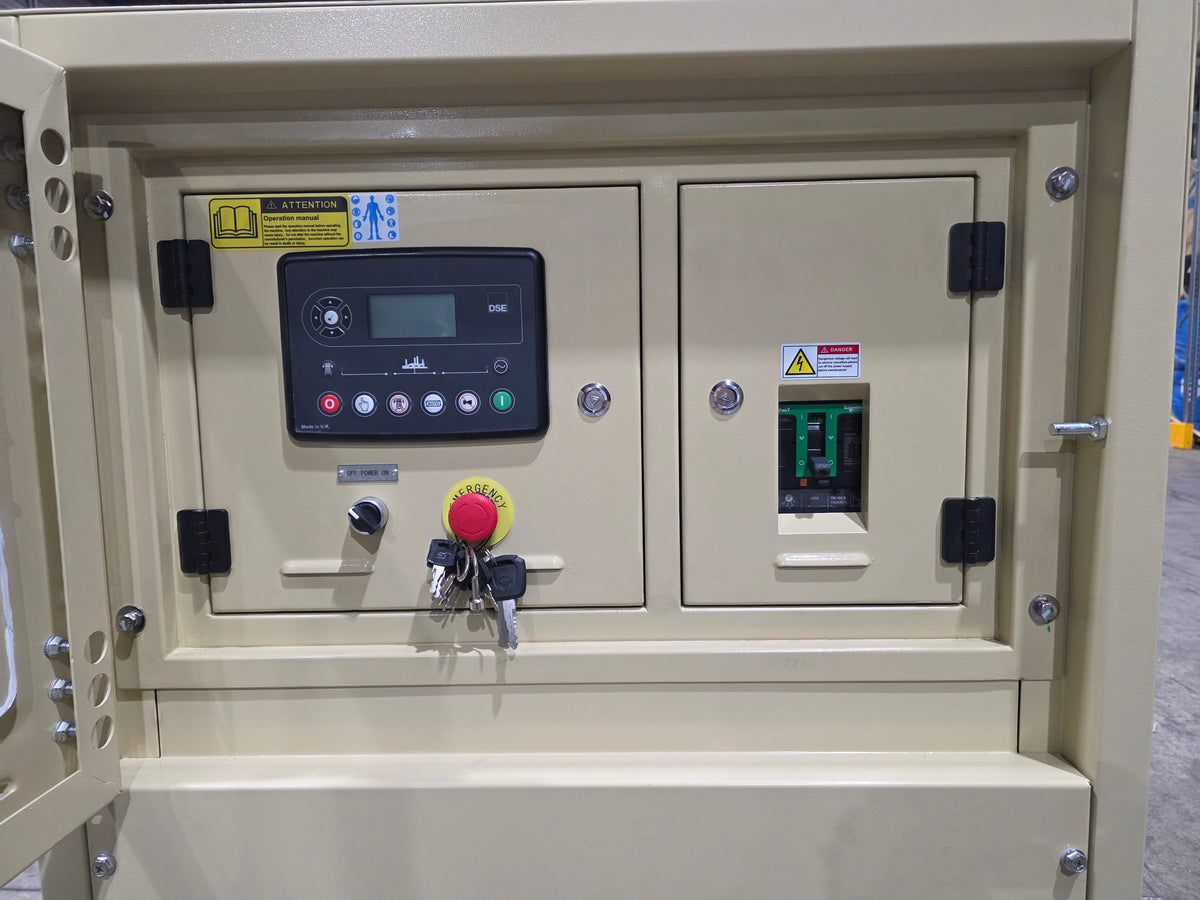

Control module

•DSE control module is ideal for a wide control range to manage, monitor, and diagnose quickly and easily.

•Display status message Provide protection Auto shutdown at fault detection
